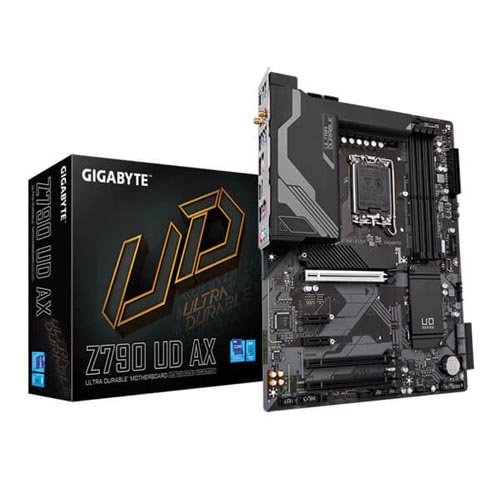

Gigabyte Z790 UD AX (Wi-Fi) Motherboard
Highlights:
Gigabyte Z790 UD AX Support 13th and 12th Gen Series Processors, 3 PCIe 4.0 x4 M.2 Connectors with 1 Thermal Guard, Dual Channel DDR5 7600MHz RAM, 2.5GbE LAN & Wi-Fi 6E
Original price was: ₹23,000.00.₹14,632.00Current price is: ₹14,632.00.
Gigabyte Z790 UD AX (Wi-Fi) Motherboard
Overview :Â
- Intel® Socket LGA 1700：Support 13th and 12th Gen Series Processors
- Unparalleled Performance：Twin 16 1 １ Phases Digital VRM Solution
- Dual Channel DDR5：4SMD DIMMs with XMP 3.0 Memory Module Support
- Next Generation Storage：3PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance - EZ-Latch Plus：PCIe 5.0 x16 Slot with Quick Release & Screwless Design
- Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
Extended Connectivity：DP, HDMI, Front USB-C® 5Gb/s, Rear USB-C® 20Gb/s - Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
- 8 8 phases parallel power design
Specification :Â
| CPU | LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors |
| L3 cache varies with CPU | |
| Chipset | Intel® Z790 Express Chipset |
| Memory | Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules |
| 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: |
| 1 x HDMI port, supporting a maximum resolution | |
| Support for HDMI 2.0 version and HDCP 2.3. | |
| 1 x DisplayPort, supporting a maximum resolution | |
| Support for DisplayPort 1.2 version and HDCP 2.3 | |
| Audio | Realtek® Audio CODEC |
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |
| Support for S/PDIF Out | |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | AMD Wi-Fi 6E RZ616 (MT7922A22M) |
| WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands | |
| BLUETOOTH 5.2 | |
| Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate | |
| Expansion Slots | CPU: |
| 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) | |
| For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
| Chipset: | |
| 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) | |
| 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) | |
| 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3) | |
| Support for AMD CrossFireâ„¢ technology (PCIEX16 and PCIEX4) | |
| Storage Interface | CPU: |
| 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) | |
| Chipset: | |
| 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) | |
| 6 x SATA 6Gb/s connectors | |
| USB | Chipset: |
| 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support | |
| 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header | |
| 1 x USB 3.2 Gen 2 Type-A ports (red) on the back panel | |
| 6 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) | |
| Chipset 2 USB 2.0 Hubs: | |
| 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) | |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector |
| 2 x 8-pin ATX 12V power connectors | |
| 1 x CPU fan header | |
| 1 x water cooling CPU fan header | |
| 3 x system fan headers | |
| 1 x system fan/water cooling pump header | |
| 2 x addressable LED strip headers | |
| 2 x RGB LED strip headers | |
| 3 x M.2 Socket 3 connectors | |
| 6 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x S/PDIF Out header | |
| 1 x USB Type-C® header, with USB 3.2 Gen 1 support | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 1 x serial port header | |
| 2 x Thunderboltâ„¢ add-in card connectors | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| 1 x reset button | |
| 1 x Q-Flash Plus button | |
| 1 x reset jumper | |
| 1 x Clear CMOS jumper | |
| Back Panel Connectors | 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support |
| 1 x USB 3.2 Gen 2 Type-A port (red) | |
| 4 x USB 3.2 Gen 1 ports | |
| 4 x USB 2.0/1.1 ports | |
| 2 x SMA antenna connectors (2T2R) | |
| 1 x HDMI 2.0 port | |
| 1 x DisplayPort | |
| 1 x RJ-45 port | |
| 3 x audio jacks | |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| Water cooling flow rate detection | |
| Fan fail warning | |
| Fan speed control | |
| BIOS | 1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Unique Features | Support for GIGABYTE Control Center (GCC) |
| Support for Q-Flash | |
| Support for Q-Flash Plus | |
| Support for Smart Backup | |
| Bundled Software | Norton® Internet Security (OEM version) |
| LAN bandwidth management software | |
| Operating System | Support for Windows 11 64-bit |
| Support for Windows 10 64-bit | |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Warranty | 3 Years |
