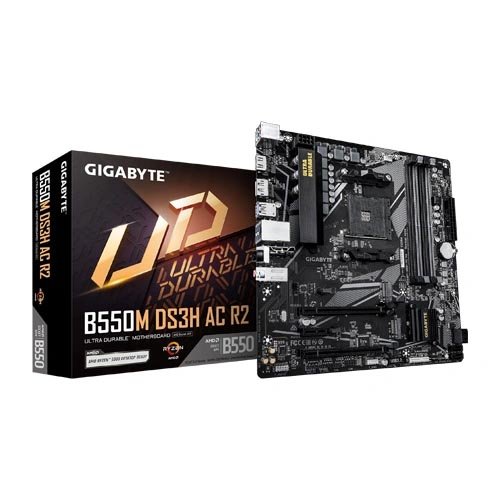

GIGABYTE B550M DS3H AC R2 M-ATX Motherboard
The Gigabyte B550M DS3H AC R2 is a versatile and reliable motherboard designed for AMD Ryzen processors.
With support for PCIe 4.0, dual M.2 storage, integrated Wi-Fi, and efficient thermal design, it delivers
excellent performance for gaming and everyday computing.
- Supports AMD Ryzen 5000 / 4000 / 3000 Series processors
- Dual-channel DDR4 memory with up to 128GB capacity
- PCIe 4.0 x16 slot for high-performance graphics cards
- Dual M.2 slots with PCIe 4.0/3.0 support
- Built-in Wi-Fi 5 and Bluetooth connectivity
₹15,254.00
Gigabyte B550M DS3H AC R2 M-ATX Motherboard
AM4 • DDR4 • PCIe 4.0 • Wi-Fi • Micro-ATX
Overview
The Gigabyte B550M DS3H AC R2 is a versatile and reliable motherboard designed for AMD Ryzen processors.
With support for PCIe 4.0, dual M.2 storage, integrated Wi-Fi, and efficient thermal design, it delivers
excellent performance for gaming and everyday computing.
- Supports AMD Ryzen 5000 / 4000 / 3000 Series processors
- Dual-channel DDR4 memory with up to 128GB capacity
- PCIe 4.0 x16 slot for high-performance graphics cards
- Dual M.2 slots with PCIe 4.0/3.0 support
- Built-in Wi-Fi 5 and Bluetooth connectivity
Performance & Power
- 5+3 phase digital VRM design
- Stable power delivery for Ryzen CPUs
- Optimized for gaming and multitasking
Memory Support
| Memory Type | DDR4 |
|---|---|
| DIMM Slots | 4 |
| Max Capacity | 128GB |
| Max Speed | Up to 4733 MHz (OC) |
| Architecture | Dual Channel |
| Support | XMP, ECC (non-ECC mode) |
Expansion Slots
- 1 × PCIe 4.0 x16 slot (CPU dependent)
- 1 × PCIe 3.0 x16 slot (x4)
- 1 × PCIe 3.0 x1 slot
Storage
- 2 × M.2 slots (PCIe 4.0/3.0)
- 4 × SATA 6Gb/s ports
- NVMe RAID support
Graphics Support
- 1 × HDMI port
- 1 × DisplayPort
- Supports integrated graphics (APU required)
Networking
- Gigabit LAN (Realtek)
- Wi-Fi 5 (802.11ac)
- Bluetooth 5.0
Connectivity
- USB 3.2 Gen 1 ports
- USB Type-C header
- Multiple USB 2.0 ports
Cooling & Features
- VRM Thermal Armor for improved heat dissipation
- Smart Fan support for system cooling
- EZ-Latch PCIe slot for easy GPU installation
RGB & Software
- RGB Fusion 2.0 support
- Addressable LED strip compatibility
- Gigabyte Control Center support
Internal I/O
- 1 × 24-pin ATX power connector
- 1 × 8-pin CPU power connector
- Multiple fan headers
- RGB and ARGB headers
- USB headers and front panel connectors
Back Panel I/O
- PS/2 keyboard/mouse port
- HDMI and DisplayPort outputs
- USB ports
- RJ-45 LAN port
- Wi-Fi antenna connectors
- Audio jacks
Form Factor
- Micro-ATX
Warranty
3 Years Manufacturer Warranty
Note: Specifications and features are subject to change without notice.
