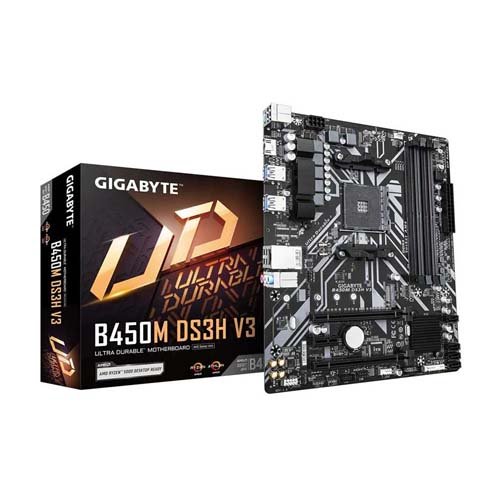

Gigabyte B450M DS3H V3 AM4 Micro ATX Motherboard
The Gigabyte B450M DS3H V3 motherboard is a reliable and feature-rich solution for AMD Ryzen-based systems.
Built on the AMD B450 chipset, it supports multiple generations of Ryzen processors and delivers stable
performance for everyday computing, gaming, and productivity builds.
- Supports AMD Ryzen 5000 / 4000 / 3000 / 2000 / 1000 Series processors
- Dual-channel DDR4 memory with up to 128GB capacity
- Ultra-fast PCIe Gen3 x4 M.2 storage support
- Realtek Gigabit LAN with bandwidth management
- RGB Fusion 2.0 support for customizable lighting
₹10,525.00
Gigabyte B450M DS3H V3 AM4 Micro ATX Motherboard
AM4 • DDR4 • PCIe 3.0 • M.2 • Micro-ATX
Overview
The Gigabyte B450M DS3H V3 motherboard is a reliable and feature-rich solution for AMD Ryzen-based systems.
Built on the AMD B450 chipset, it supports multiple generations of Ryzen processors and delivers stable
performance for everyday computing, gaming, and productivity builds.
- Supports AMD Ryzen 5000 / 4000 / 3000 / 2000 / 1000 Series processors
- Dual-channel DDR4 memory with up to 128GB capacity
- Ultra-fast PCIe Gen3 x4 M.2 storage support
- Realtek Gigabit LAN with bandwidth management
- RGB Fusion 2.0 support for customizable lighting
Performance & Features
- Optimized for multi-generation Ryzen compatibility
- Smart Fan 6 with multiple temperature sensors
- Hybrid fan headers with FAN STOP support
- CEC 2019 Ready for improved power efficiency
Memory Support
| Memory Type | DDR4 |
|---|---|
| DIMM Slots | 4 |
| Max Capacity | 128GB |
| Supported Speeds | 2933 / 2667 / 2400 / 2133 MT/s |
| Architecture | Dual Channel |
| Support | XMP, ECC (non-ECC mode) |
Expansion Slots
- 1 × PCIe 3.0 x16 slot
- 1 × PCIe x16 slot (x1 mode)
- 1 × PCIe x1 slot
Storage
- 1 × M.2 PCIe 3.0 x4 slot (NVMe & SATA support)
- 4 × SATA 6Gb/s ports
- RAID support (0/1/10)
Graphics Support
- 1 × HDMI port (up to 4K @ 60Hz)
- Supports integrated graphics (APU required)
Networking
- Realtek Gigabit LAN
- Bandwidth management with cFosSpeed
Connectivity
- USB 3.1 Gen 1 ports
- USB 2.0 ports
- Multiple internal USB headers
Audio
- Realtek High Definition Audio
- 2/4/5.1/7.1-channel support
- S/PDIF output support
- Audio Noise Guard with high-quality capacitors
RGB & Software
- RGB Fusion 2.0 support
- Addressable LED strip compatibility
- APP Center utilities including EasyTune and System Viewer
Internal I/O
- 1 × 24-pin ATX power connector
- 1 × 8-pin CPU power connector
- Fan headers and RGB headers
- M.2 and SATA connectors
- USB headers and front panel connectors
Back Panel I/O
- PS/2 keyboard/mouse port
- HDMI port
- USB 3.1 Gen 1 ports
- USB 2.0 ports
- RJ-45 LAN port
- Audio jacks
Operating System
- Windows 11 64-bit
- Windows 10 64-bit
- Windows 7 64-bit (CPU dependent)
Form Factor
- Micro-ATX (24.4cm × 21.5cm)
Warranty
3 Years Manufacturer Warranty
Note: Specifications and features are subject to change without notice.
