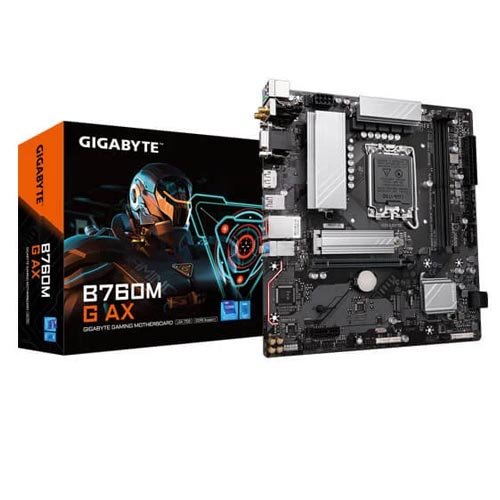

Gigabyte B760M G AX (Wi-Fi) DDR5 Motherboard
Brand: Gigabyte
- Supports Intel 14th, 13th, and 12th Gen processors (LGA1700 socket)
- 6+2+1 phase digital VRM with premium components
- Dual channel DDR5 memory with up to 96GB capacity
- PCIe 4.0 x16 slot for modern GPUs
- Dual PCIe 4.0 x4 M.2 slots for high-speed storage
- Wi-Fi 6E and Bluetooth 5.3 for fast wireless connectivity
- 2.5Gb Ethernet for high-speed networking
- USB-C connectivity and multiple USB ports
- Smart Fan 6 with advanced cooling features
₹22,406.00
Gigabyte B760M G AX (Wi-Fi) DDR5 Motherboard
The Gigabyte B760M G AX motherboard is a feature-rich Micro ATX motherboard designed for Intel 14th, 13th, and 12th generation processors. It offers DDR5 memory support, PCIe 4.0 connectivity, Wi-Fi 6E, and advanced cooling features, making it ideal for gaming and modern PC builds.
Key Features
- Supports Intel 14th, 13th, and 12th Gen processors (LGA1700 socket)
- 6+2+1 phase digital VRM with premium components
- Dual channel DDR5 memory with up to 96GB capacity
- PCIe 4.0 x16 slot for modern GPUs
- Dual PCIe 4.0 x4 M.2 slots for high-speed storage
- Wi-Fi 6E and Bluetooth 5.3 for fast wireless connectivity
- 2.5Gb Ethernet for high-speed networking
- USB-C connectivity and multiple USB ports
- Smart Fan 6 with advanced cooling features
Specifications
- Model: B760M G AX
- Chipset: Intel B760
- Socket: LGA1700
- CPU Support: Intel Core (14th / 13th / 12th Gen), Pentium Gold, Celeron
- Memory: 2 x DDR5 DIMM slots, up to 96GB
- Memory Speed: Up to 8000 MHz (Overclocked)
- Expansion Slots: PCIe 4.0 x16, PCIe x1
- Storage: 2 x M.2 PCIe 4.0, 4 x SATA 6Gb/s
- LAN: Realtek 2.5Gb Ethernet
- Wireless: Wi-Fi 6E, Bluetooth 5.3
- Audio: Realtek HD Audio (7.1-channel) with S/PDIF
- USB Ports: USB-C, USB 3.2 Gen 1, USB 2.0
- Display Outputs: HDMI, DisplayPort, D-Sub
- Form Factor: Micro ATX
- Operating System: Windows 10 / 11 (64-bit)
- Warranty: 3 Years
Product Description
This motherboard is designed to deliver strong performance with support for DDR5 memory and PCIe 4.0 storage. It ensures faster data transfer, improved system responsiveness, and compatibility with modern components.
With built-in Wi-Fi 6E and 2.5Gb Ethernet, it provides fast and reliable connectivity for gaming and streaming. The Smart Fan 6 technology allows precise cooling control, ensuring system stability under load.
Its durable design, easy installation features, and modern connectivity options make the B760M G AX an excellent choice for building a powerful and future-ready PC.
Additional Information
- Supports RAID 0, RAID 1, RAID 5, and RAID 10
- Includes RGB and addressable LED headers
- Q-Flash Plus for BIOS updates without CPU
- Compatible with Gigabyte Control Center software
