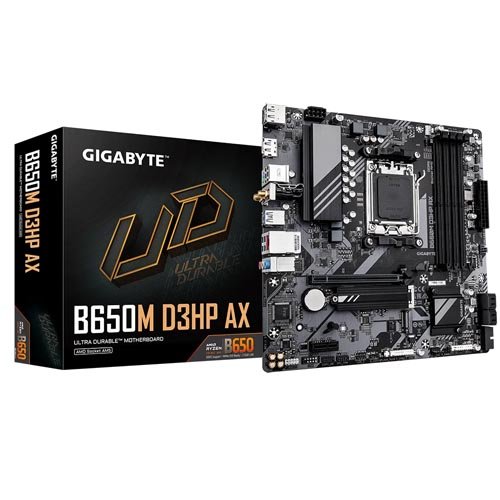

Gigabyte B650M D3HP AX AM5 Micro ATX Motherboard
The Gigabyte B650M D3HP AX motherboard is built for AMD Ryzen 7000 and 8000 series processors,
offering strong performance, modern connectivity, and reliable power delivery. With DDR5 memory
support, WiFi 6E, and PCIe 4.0 storage, it provides a solid foundation for gaming and productivity systems.
- Supports AMD Ryzen 7000 & 8000 Series processors
- DDR5 memory support up to 7600MHz (OC)
- PCIe 4.0 x16 slot for graphics cards
- WiFi 6E and 2.5GbE LAN for fast networking
- Dual M.2 slots for high-speed storage
₹11,780.00
Gigabyte B650M D3HP AX AM5 Micro ATX Motherboard
AMD B650 • AM5 • DDR5 • WiFi 6E • 2.5GbE LAN • Micro ATX
Overview
The Gigabyte B650M D3HP AX motherboard is built for AMD Ryzen 7000 and 8000 series processors,
offering strong performance, modern connectivity, and reliable power delivery. With DDR5 memory
support, WiFi 6E, and PCIe 4.0 storage, it provides a solid foundation for gaming and productivity systems.
- Supports AMD Ryzen 7000 & 8000 Series processors
- DDR5 memory support up to 7600MHz (OC)
- PCIe 4.0 x16 slot for graphics cards
- WiFi 6E and 2.5GbE LAN for fast networking
- Dual M.2 slots for high-speed storage
Performance Features
- 5+2+2 phase digital VRM design for stable power delivery
- Optimized for multi-core CPUs and efficient performance
- Supports AMD EXPO and Intel XMP memory profiles
Memory Support
- 4 x DDR5 DIMM slots with dual-channel architecture
- Supports up to 192GB system memory
- Wide range of memory speeds up to 7600MHz (OC)
Expansion & Storage
- 1 x PCIe 4.0 x16 slot for GPU
- 1 x PCIe x1 slot for expansion cards
- 2 x M.2 PCIe 4.0 slots for NVMe SSDs
- 4 x SATA 6Gb/s ports with RAID support
Connectivity
- WiFi 6E (802.11ax) with Bluetooth 5.3
- 2.5GbE LAN for high-speed networking
- USB Type-C and USB 3.2 Gen 1 ports
Graphics & Display
- 2 x DisplayPort outputs
- 1 x HDMI output
- Supports triple display setup (CPU dependent)
Cooling & Design
- Smart Fan 6 with multiple temperature sensors
- Hybrid fan headers with fan stop support
- EZ-Latch PCIe slot for easy GPU installation
Specifications
| Socket | AM5 |
|---|---|
| Chipset | AMD B650 |
| Form Factor | Micro ATX |
| Memory | DDR5 up to 192GB |
| Memory Speed | Up to 7600MHz (OC) |
| PCIe | PCIe 4.0 |
| M.2 Slots | 2 |
| SATA Ports | 4 |
| LAN | 2.5GbE |
| Wireless | WiFi 6E, Bluetooth 5.3 |
| Display Outputs | HDMI, 2 x DisplayPort |
Ideal For
- Gaming PC builds
- Mid-range AMD systems
- Compact Micro ATX builds
- Content creation and multitasking
Warranty
3 Years Warranty
Note: Specifications and features are subject to change without notice.
