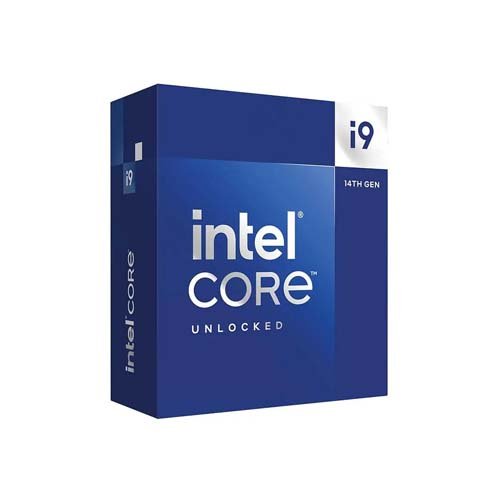

Intel Core I9 14900KS 14th Gen Desktop Processor BX8071514900KS

Overview

The Intel® Core™ i9-14900KS desktop processor is designed for enthusiast gamers and professional creators.
It features Intel® Adaptive Boost Technology, Intel® Thermal Velocity Boost, and Intel® Turbo Boost Max Technology 3.0
to deliver exceptional performance. It supports PCIe 5.0 and 4.0, as well as DDR5 and DDR4 memory.

This unlocked 14th Gen processor is compatible with Intel® 700 and 600 series chipset motherboards
and operates with a base power of 150W.

Specifications

Performance

• Total Cores: 24
• Performance Cores: 8
• Efficient Cores: 16
• Total Threads: 32
• Max Turbo Frequency: 6.2 GHz
• Thermal Velocity Boost Frequency: 6.2 GHz
• Turbo Boost Max Technology 3.0 Frequency: 5.9 GHz
• Performance-core Max Turbo Frequency: 5.7 GHz
• Efficient-core Max Turbo Frequency: 4.5 GHz
• Performance-core Base Frequency: 3.2 GHz
• Efficient-core Base Frequency: 2.4 GHz

Cache & Power

• Intel® Smart Cache: 36 MB
• Total L2 Cache: 32 MB
• Processor Base Power: 150 W
• Maximum Turbo Power: 253 W

Memory

• Max Memory Size: 192 GB
• Memory Types: DDR5 (up to 5600 MT/s), DDR4 (up to 3200 MT/s)
• Memory Channels: 2
• Max Memory Bandwidth: 89.6 GB/s
• ECC Memory Support: Yes

Graphics

• GPU: Intel® UHD Graphics 770
• Base Frequency: 300 MHz
• Max Dynamic Frequency: 1.65 GHz
• Execution Units: 32
• Supported Displays: 4

Graphics Capabilities

• Max Resolution (HDMI): 4096 × 2160 @ 60Hz
• Max Resolution (DisplayPort): 7680 × 4320 @ 60Hz
• Max Resolution (eDP): 5120 × 3200 @ 120Hz
• DirectX Support: 12
• OpenGL Support: 4.5
• OpenCL Support: 3.0

Expansion & Connectivity

• PCI Express Revision: 5.0 and 4.0
• PCIe Configurations: Up to 1×16 or 2×8
• Max PCIe Lanes: 20
• DMI Revision: 4.0
• Max DMI Lanes: 8

Compatibility

• Socket: FCLGA1700
• Chipset Compatibility: Intel® 600 & 700 Series
• Max CPU Configuration: 1

Thermal & Package

• TJunction: 100°C
• Package Size: 45.0 mm × 37.5 mm

Warranty

• 3 Years
